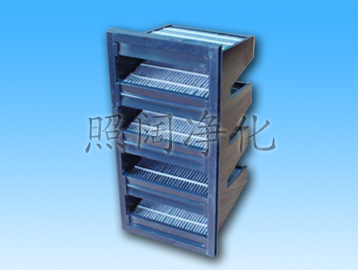

| Product name： | V-Type Active Carbon Filter |
| Description： |
Feature:
1. Columnar active carbon, and through chemical formula processing.
2. Strong adsorptive capacity, light weight and easy installation
3. Strong surface adsorptive capacity, effectively control the odor and
organic pollution in the air, settle the air filtration during ventilation at ordinary air conditioner site.
4. Temperature :0-40℃ ,maximum moisture:70% suggest final pressure loss: 450Pa
Model
W*H*D (mm)
Filter Area
M²
KG
Air Flow
CMH
Resistance
Pa
Air Flow
CMH
Resistance
Pa
Frame materal
Filter material
sealing strip
ZZK-VX522
592*287*292
4.5
2.0
1000
60
1700
90
Plastic frame
Aluminum frame
galvanized frame
active carbon no-woven fabric
hot melt adhesive
EVA
ZZK-VX542
592*490*292
8
3.5
1600
60
2700
90
ZZK-VX552
592*592*292
9.6
4.0
2000
60
3400
90
Application:
Special designed for central air-conditioning and centralize ventilating system, eliminate the peculiar smell (odor) and harmful gas (acid or alkali gas, formaldehyde, mercury vapor). Widely used in the ventilating system of airport, museum, library, luxury hotel, office building and civil architecture
 |
||||||||||
|
||||||||||
 |
||||||||||
