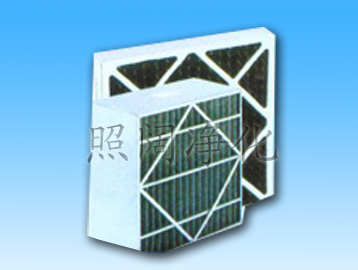

| Product name： | Medium Efficiency Box-Type |
| Description： |
Feature:
1. Big folding scene structure, large adsorption area, favorable adsorption capacity;
2. Active carbon pellet distributed evenly, its resistance is low;
3. Long service life.
Application:
Suitable for air-conditioning system which emphasis on air quality, such as office building, hospital, airport, biotechnology, semiconductor manufactory and other occurs request air quality.
|
Model |
W*H*D |
Filter Area m² |
Air Flow CMH |
Resistance Paa |
Frame material |
Filter material |
Fold quantity |
|
ZZK-XSHTX251 |
290*595*150 |
1.5 |
850 |
102 |
Galvanized frame
Aluminum frame
stainless steel frame |
Active carbon polyester |
9 |
|
ZZK-XSHTX551 |
595*595*150 |
3.0 |
1700 |
102 |
17 |
||
|
ZZK-XSHTX252 |
290*595*292 |
3.0 |
1700 |
102 |
9 |
||
|
ZZK-XSHTX552 |
595*595*292 |
6.0 |
3400 |
102 |
17 |
||
|
We can accept other size order beside the above mentioned size. |
|||||||
 |
||||||||||
|
||||||||||
 |
||||||||||
