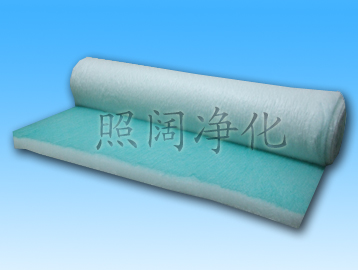

| Product name： | Glass fiber filter |
| Description： |
Feature:
1. Adopting long length fiberglass, be made by the method of superimposing the non-woven fabric, gradually close structure, big quantity of ventilating, low air resistance, high dust holding capacity, long service life;
2. Having the features of length fiber, high intensity, keeping original structure even if under strong wind;
3. Flame retardancy, temperature resistant 120℃; inlet air side with green color, outlet air side white color; size Can be made according to clients' requirement to clip, install into the metal frame, or supply whole roll.
Application:
Suitable for dry-type coating project like spray paint platform, paint mist pouring out system of automobile spray paint room.
common Specification and function detail:
|
Model |
ZZK-60 |
ZZK-100 |
|
Material Dimension |
60mmT×1m×20m 60mmT×2m×20m |
100mmT×1m×20m 100mmT×2m×20m |
|
Collect Efficiency |
92~97% |
97~99% |
|
Original Pressure Loss |
10Pa |
15Pa |
|
Final Pressure Loss |
130Pa |
150Pa |
|
Temperature Resistant |
120ºC |
|
We can accept other size order beside the above mentioned size
 |
||||||||||
|
||||||||||
 |
||||||||||
