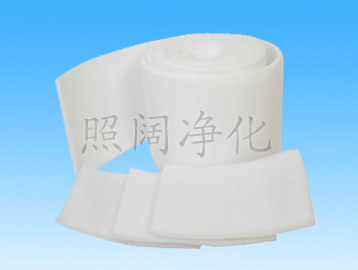

| Product name： | Non-woven filter |
| Description： |
Feature:
1. This product does not contain any chemical adhesive; have the feature of non-flammable in fire;
2. Adopting composite fiber with different fusion point of internal and external. The fiber combined tightness, uneasy to fall off;
3. Adopting flame resistance hot melting fiber, temperature resistance 100℃;
4. The sizes can be according to clients' requirements to clip, or supply whole roll.
Application:
Suitable for all kinds of environment protection for industrial waste gas; the first filter screen in inlet air of external air or return air filter of air-conditioning system; pre-filter screen of medium efficiency filter.
common Specification and function detail:
|
Model |
HGP-100 |
HGP-200 |
HGP-300 |
HGP-400 |
HGP-500 |
|
material Dimension |
5mmT×2m×50m |
10mmT×2m×20m |
15mmT×2m×20m |
20mmT×2m×20m |
25mmT×2m×20m |
|
Material |
polyester |
||||
|
Thickness |
5mm |
10mm |
15mm |
20mm |
25mm |
|
Air Speed |
1.0m/s |
||||
|
Original Pressure Loss |
30Pa |
40Pa |
45Pa |
50Pa |
58Pa |
|
Final Pressure Loss |
147Pa |
196Pa |
196Pa |
196Pa |
196Pa |
|
Average Collection Efficiency |
76% |
80% |
85% |
88% |
90% |
|
Temperature Resistant |
100ºC |
||||
|
Collection Capacity |
450g/m2 |
600g/m2 |
520g/m2 |
460g/m2 |
400g/m2 |
We can accept other size order beside the above mentioned size
 |
||||||||||
|
||||||||||
 |
||||||||||
