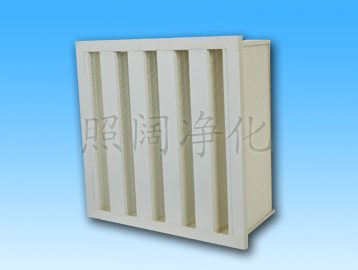

| Product name： | Combined V- Type Filte |
| Description： |
Feature:
1. It's mini-pleat filter element adopts full-automatic fold scene machine for spraying and folding;
2. Using Special fiberglass filter paper or polypropylene as filter material;
3. The frame made of metal, or plastic;
4. Large effective area, low resistance, long service life;
5. Each filter through rigorous testing;
6. Various efficiency types between F6-H14 are available.
Application:
V-type medium effective filter is suitable used in big volume ventilation device, such as final stage filter, and front filter of high efficiency and ultra efficiency of ventilation system in power plant.
V-type Technical Parameters:
|
Model |
W*H*D (mm) |
Efficiency |
Air Flow (CMH) |
Resistance (Pa) |
Filter Area M² |
Frame |
Filter Material |
Protecting Wire Net |
Sealing Strip |
|
|
ZZK-2VXZ362 |
305*610*292 |
F7 |
1700 |
120 |
11.19 |
Aluminum frame
Galvanize frame
Plastic frame |
Fiberglass
Synthetic fiber |
Polyure- thane |
EVA |
|
|
H10 |
180 |
|||||||||
|
H14 |
249 |
|||||||||
|
ZZK-4VXZ632 |
610*305*292 |
F7 |
1700 |
120 |
11.37 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
249 |
|||||||||
|
ZZK-5VXZ632 |
610*305*292 |
F7 |
1700 |
105 |
14.21 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
235 |
|||||||||
|
ZZK-6VXZ632 |
610*305*292 |
F7 |
1700 |
95 |
17.05 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
216 |
|||||||||
|
ZZK-4VXZ662 |
610*610*292 |
F7 |
3400 |
120 |
22.39 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
249 |
|||||||||
|
ZZK-5VXZ662 |
610*610*292 |
F7 |
3400 |
105 |
27.98 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
235 |
|||||||||
|
ZZK-6VXZ662 |
610*610*292 |
F7 |
3400 |
95 |
33.58 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
216 |
|||||||||
|
ZZK-2VFZ287 |
287*287*292 |
F7 |
800 |
90 |
4.2 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
240 |
|||||||||
|
ZZK-4VFZ522 |
592*287*292 |
F7 |
1700 |
120 |
9.12 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
249 |
|||||||||
|
ZZK-4VFZ542 |
592*490*292 |
F7 |
3400 |
120 |
16.24 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
249 |
|||||||||
|
ZZK-4VFZ552 |
592*592*292 |
F7 |
3400 |
120 |
19.79 |
|||||
|
H10 |
180 |
|||||||||
|
H14 |
249 |
|||||||||
|
Suggest final pressure loss is 2-3 times of original pressure loss, VF flange thickness is 25mm, size can be made according to the client's requirements. |
||||||||||
