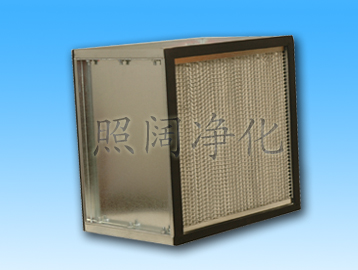

Product name: Deep- pleat Filter
Description:



Detailed information


Feature:

1. Deep-pleat filter element adopts full-automatic fold scene machine for folding;

2. Using Special fiberglass filter paper as filter material;

3. The frame made of metal;

4. Large filtering space, low resistance, big dust collection, long service life;

5. Each filter through rigorous testing;

6. Various efficiency types between F6-H14 are available.



Application:

Suitable for places need high cleanliness air filter system, such as electronics factory, pharmaceutical plant, foodstuff and semiconductor industries, and hospital etc.



High efficiency deep-pleat Technical Parameters





Model

W*H*D (mm)

Efficiency

Air Flow (CMH)

Resistance

(Pa)

Filter

Area

Air Flow (CMH)

Resistance

(Pa)

Filter

Area

Frame

Filter

Material

Separator

Protecting Wire Net

Sealing Strip

ZZK-YG3615

305*610*150

F7

502

85

5.41

853

125

6.87

Aluminum frame



Galvanize frame



SS.Frame

Fiberglass

Aluminium foil



Two-side offset paper

Polyure- thane

EVA

H11

175

205

H13

210

249

ZZK-YG6615

610*610*150

F7

1004

85

10.4

1707

125

13.19

H11

175

205

H13

210

249

ZZK-YG9615

915*610*150

F7

1507

85

15.25

2562

125

19.51

H11

175

205

H13

210

249

ZZK-YG12615

1220*610*150

F7

2008

85

20.24

3414

125

25.97

H11

175

205

H13

210

249

ZZK-YG3629

305*610*292

F7

1004

85

12.05

125

15.38

H11

175

205

H13

210

249

ZZK-YG6629

610*610*292

F7

2008

85

23.16

2000

125

29.53

H11

175

205

H13

210

249

ZZK-YG9629

915*610*292

F7

3014

85

33.98

5124

125

43.69

H11

175

205

H13

210

249

ZZK-YG12629

1220*610*292

F7

4016

85

45.09

6827

125

58.15

H11

175

205

H13

210

249

ZZK-YG12622

1260*630*220

F7

3429

85

34.67

5829

125

44.82

H11

175

205

H13

210

249

ZZK-YG6622

630*630*220

F7

1714

85

17.8

2914

125

22.85

H11

175

205

H13

210

249

ZZK-YG9422

968*484*220

F7

2024

85

20.58

3441

125

26.46

H11

175

205

H13

210

249

ZZK-YG4415

484*484*150

F7

632

85

6.59

1075

125

9.39

H11

175

205

H13

210

249

ZZK-YG4422

484*484*220

F7

1012

85

10.64

1720

125

13.58

H11

175

205

H13

210

249

ZZK-YG3315

320*320*150

F7

276

85

2.97

469

125

3.75

H11

175

205

H13

210

249

ZZK-YG3322

320*320*220

F7

440

85

4.8

751

125

6.05

H11

175

205

H13

210

249

Suggest final pressure loss is 2-3 times of original pressure loss, the sizes can be made according to the client's requirements.
