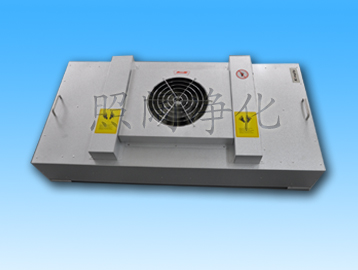

Feature:

1.       Shell structure be made of stainless steel, aluminum alloy, cold-roll steel sheets, have the features of light weight, resistant to corrosion, anti-corrosive, elegant appearance.

2.       Special suitable for assembling as ultra-clean production lines, can be a single or series multiple as a 100 level assembly line for using according to process requirements.

3.        Fan suck air from top of FFU and send out the clean air which filtered by HEPA, have the features of low power consumption, high static pressure, adjustable air speed, low operating cost.

Notice and Maintenance:

1. Fan units equipped with abnormal indicator light and output connection points, be able to self-check the abnormal reasons, LED light with green color displayed as operating gear of current fan. Abnormal indicator light (Alarm) turns out when fun normal operating. Abnormal indicator light turns on when following cases occurs: motor overloaded, coils of motor burned out, inner connection wire fell off.

2. Replace the pre-filter and host filter, pre-filter need to be cleaned one time every 7-10 days as it accumulates large dust grains. Please removal it with its frame, and then clean it with water before reload and use. The air speed and air flow of host filter will decrease while host filter accumulating too much dust. In case of pressure loss of filter screen increase 2 times, or not reach to the clean level, then must be replaced.

3. In order to utilize the maximum impact of FFU, please detailed inspect each component when installation, periodically inspect at least 1-2 times one year at the same time.

Feature:

1.       Filter efficiency for granular ≥0.3µm is more than 99.99%;

2.       Box body adopts high quality anodic oxidation aluminum alloy sections, stick fireproof thermal insulation cotton to outside; Containing a replaceable mini-pleat filter adopts special fiberglass, have the features of low resistance

and large air flow;

3.       Be equipped with high quality electrophoresis metal net at the air outlet, supplying the airflow velocity distribution;

4.  Each filter by rigorous inspection.

 Material Charter：

Application:

Mainly used in high clean workshop and clean room as terminal filtration in air supply system, which can effectively ensure the flow speed and prevention of eddy current.
