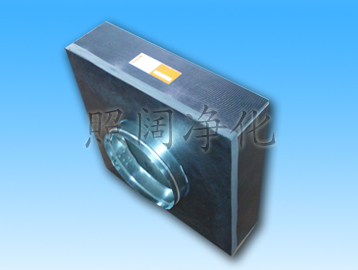

| Product name： | Disposable high efficiency filter box |
| Description： |
Feature:
1. Filter efficiency of granular ≥0.3µm is more than 99.99%;
2. Box body adopts high quality anodic oxidation aluminum alloy sections, stick fireproof thermal insulation cotton to outside;
Containing a replaceable mini-pleat filter adopts special fiberglass, have the features of low resistance and large air flow;
3. Be equipped with high quality electrophoresis metal net at the air outlet, supplying the airflow wind speed is uniform;
4. Each filter box through rigorous testing.
|
Model |
Box Body Size（mm) |
Filter Area(㎡） |
(mm) Air Inlet Diameter |
Pressure(pa)@air volume(m3/h) |
|||
|
ZZK-570 |
570×570×150 |
9.00 |
Φ250 Φ300 Φ350 |
100@500 |
125@620 |
150@780 |
180@870 |
|
ZZK-600 |
600×600×150 |
9.22 |
100@550 |
125@690 |
150@870 |
180@970 |
|
|
ZZK-610 |
610×610×150 |
9.50 |
100@570 |
125@715 |
150@900 |
180@1000 |
|
|
ZZK-1170 |
1170×570×150 |
18 |
100@1030 |
125@1290 |
150@1630 |
180@1800 |
|
|
ZZK-1200 |
1200×600×150 |
19 |
100@1100 |
125@1390 |
150@1760 |
180@1950 |
|
|
ZZK-1210 |
1210×600×150 |
19.22 |
100@1120 |
125@1400 |
150@1780 |
180@1970 |
|
|
ZZK-1220 |
1220×610×150 |
19.52 |
100@1150 |
125@1440 |
150@1820 |
180@2020 |
|
|
We can accept other size order beside the above mentioned size. Frame can be galvanized or aluminum, diffuser plate can be punched hole plate or galvanized steel plate, protective net can be aluminum net or painted wire net. |
|||||||
Suitable for palces which emphasis on air quality, such as hospital, electronic manufacture, semiconductor factory clean room and laminar flow equipment etc. which can effectively ensure the flow speed and prevention of eddy current.
 |
||||||||||
|
||||||||||
 |
||||||||||
