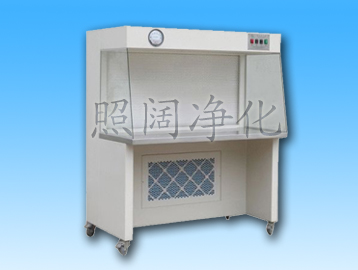

| Product name： | Clean Bench |
| Description： |
Features of horizontal unidirectional airflow:
1. horizontal airflow with open type table-board, easy operation;
2. Can be equipped with pressure differential gauge in order to master the changing resistance of HEPA anytime;
3. Adopting adjustable fan unit system, Touching Switchgear adjust voltage, keep the wind speed of working area always in perfect status;
4. Working table-board adopts stainless steel material.
Features of vertical unidirectional airflow
1. Adopting imported stainless steel and after liner, and equipped with tempered glass making working area more commodiousness and brightness;
2. Be equipped with spring fluctuating gate, locate instantly , flexible and convenient;
3. The ventilation door are made of aluminum alloy, optionally adjust air flow of pre-filter.
|
Model |
ZKK-1F |
ZKK-1FD |
ZKK-2F |
ZKK-2FD |
ZKK-840K |
ZKK-1300L |
||||
|
Cleanness Degree |
100degree |
|||||||||
|
Average Wind Speed |
0.3-0.6m/s）adjustable |
|||||||||
|
Noise |
≤62Db(A) |
|||||||||
|
HalfPeakOfVibration |
≤5µm |
|||||||||
|
illumination |
≥300LX |
|||||||||
|
Power Supply |
AC，220V/50Hz single phase |
|||||||||
|
Ultimate Output |
0.4kw |
0.4kw |
0.8kw |
0.8kw |
0.4kw |
0.8kw |
||||
|
Weight |
150kg |
150kg |
350kg |
350kg |
230kg |
420kg |
||||
|
working Area Dimension (W*H*D) mm |
720*650*570 |
1180*650*570 |
720*650*570 |
1180*650*570 |
660*650*570 |
1120*650*720 |
||||
|
Overall Diamension (W*H*D) mm |
840*825*1430 |
1300*825*1430 |
840*825*1430 |
1300*825*1430 |
840*825*1610 |
1300*825*1710 |
||||
|
Filter Size And Quantity |
760*610*50(1) |
610*610*50(2) |
760*610*50(1) |
610*610*50(2) |
760*510*50(1) |
610*610*50(2) |
||||
|
Fluorescent Lamp/UV Lamp Specification And Quantity |
20w*(1) |
30w*(1) |
20w*(1) |
30w*(1) |
20w*(1) |
30w*(2) |
||||
|
Remark |
single person |
double person |
single person |
double person |
single person |
double person |
||||
 |
||||||||||
|
||||||||||
 |
||||||||||
